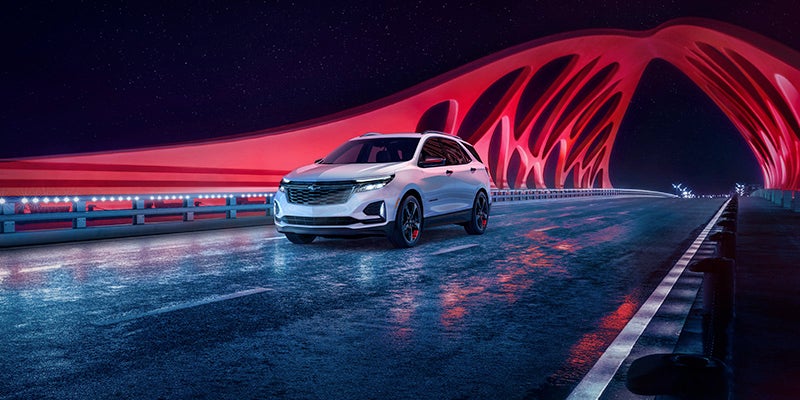

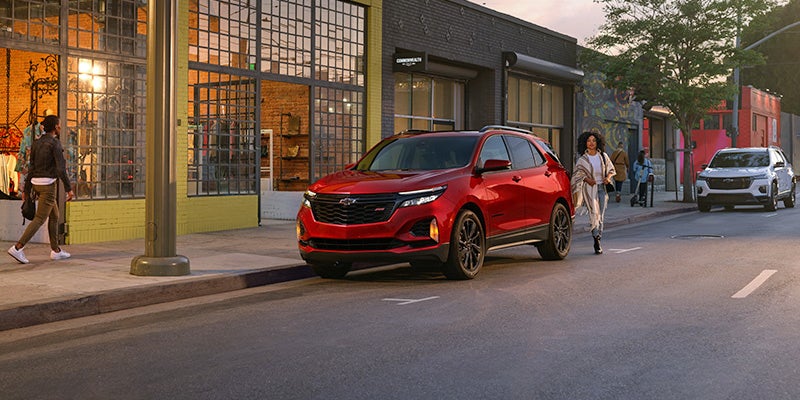

Chevy's Affordable, Best-Selling SUV
New for 2024
Model Details
Performance & Fuel Economy
Fuel Economy is rated at 26mpg city, and 31 mpg highway, and adding AWD will lower these values by 1 or 2 each.

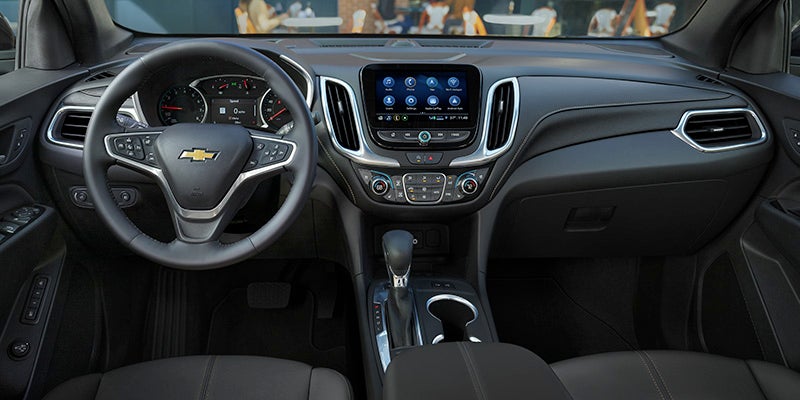

Interior & Storage
Infotainment & Safety Features
On the safety front, the Equinox earned a five-star rating from the NHTSA and comes with a wide range of safety features.
- Standard forward-collision warning and automated emergency braking
- Standard lane-departure warning and lane-keeping assist
- Available adaptive cruise control
- Front pedestrian braking
- Following distance indicator
- Rear vision camera
- Teen driver Technology
- and more standard and available safety features to keep you and your passengers safe
Equinox Trims

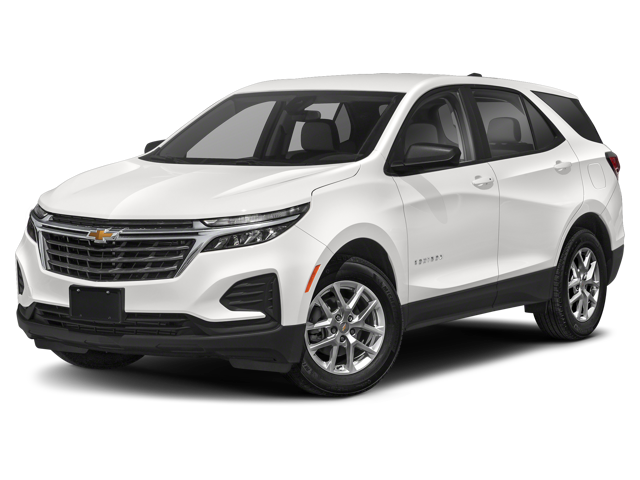

LS
- Chevy Safety Assist
- LED headlamps
- Teen Driver technology
- Wireless Apple CarPlayĀ® and wireless Android Autoā¢ compatibility

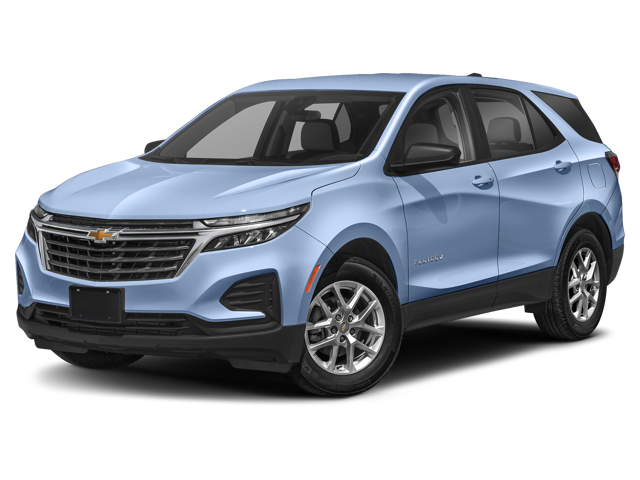

LT
- Chevy Safety Assist
- LED daytime running lamps
- Power driver seat with power lumbar control
- Multi-color Driver Information Center display

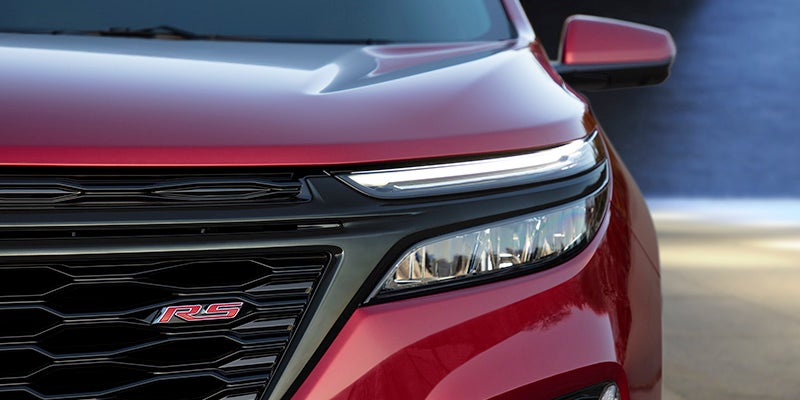

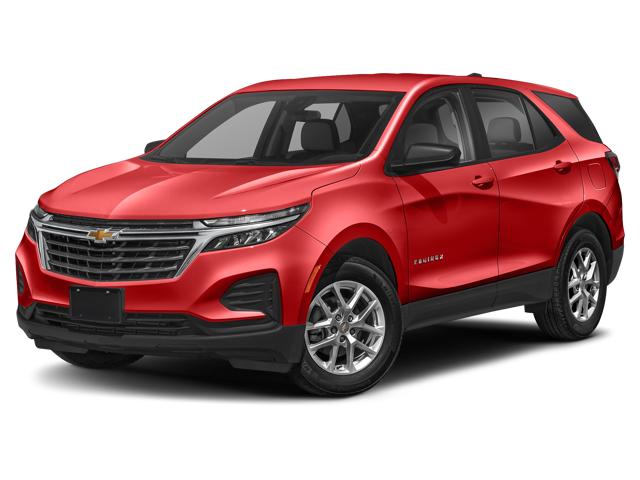

RS
- Chevy Safety Assist
- Power liftgate
- Front and Rear Park Assist
- LED taillamps

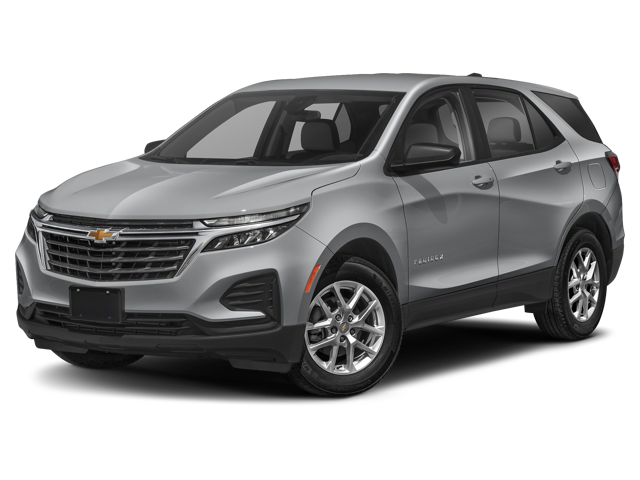

Premier
- Chevy Safety Assist
- Chevrolet Infotainment 3 Plus system with 8-inch diagonal color touch-screen
- 18-inch machined-face aluminum wheels
- Hands-free power liftgate
Special Editions
Midnight Edition
- 18" gloss Black aluminum wheels
- 18" all-season blackwall tires
- Front and rear Black bowtie emblems
- Body-color mirror caps
- Unique Black grille
- Available on LS
Redline Edition
- 19" Black wheels with Red accents and Black center caps
- 19" all-season blackwall tires
- Black bowtie emblems and badges with Red outline
- Redline decals on exterior mirrors
- Redline-specific Black grille
- Black window surround and door handles
- Black Ice interior accents
- Available on Premier
Specifications
2024 CHEVROLET EQUINOX SPECIFICATIONS (click to expand)
EPA-EST. MPG
FWD |
26 city |
AWD |
24 city |
FUEL TANK CAPACITY (approx.)
14.9 gal. / 56 liters (FWD) |
ENGINE
|
1.5L turbo DOHC DI VVT with automatic stop/start |
Bore & Stroke (in. / mm): |
2.9 x 3.4 / 74 x 86.6 |
Block Material: |
Cast aluminum |
Cylinder Head Material: |
Cast aluminum |
Valvetrain: |
Dual overhead camshafts; four valves per cylinder |
Fuel Delivery: |
Direct injection |
Horsepower (hp / kW @ rpm): |
175 / 131 @ 5600 |
Torque (lb.-ft. / Nm @ rpm): |
203 / 275 @ 2000-4000 |
TRANSMISSION & AXLE
Type: |
Hydra-Matic 6T40 six-speed automatic |
Gear Ratios (:1) |
|
First |
4.58 |
Second |
2.96 |
Third |
1.91 |
Fourth |
1.44 |
Fifth |
1.00 |
Sixth |
0.74 |
Reverse |
2.94 |
Final Drive Ratio: |
3.50 (FWD) |
CHASSIS & SUSPENSION
Front Suspension: |
MacPherson strut with specifically tuned coil springs, direct-acting stabilizer bar |
Rear Suspension: |
Four-link independent rear suspension |
Steering Type: |
Electric power-assisted rack-and-pinion |
Turning Circle (ft. / m): |
37.4 / 11.4 (17-in. wheels) |
Brake Type: |
Four-wheel disc with ABS and ESC; Duralifeā¢ rotors with low-drag calipers |
Brake Rotor Size (in. / mm): |
Front: 11.8 / 300 |
Wheel Size: |
17-in. aluminum (std. LS and LT) |
Tire Size: |
P225/65R17 |
EXTERIOR DIMENSIONS
Wheelbase (in. / mm): |
107.3 / 2725 |
Overall Length (in. / mm): |
183.1 / 4652 |
Overall Width (in. / mm): |
72.6 / 1843 |
Overall Height (in. / mm): |
65.4 / 1661 |
Track (in. / mm): |
Front: 62.2 / 1580 |
Ground clearance (in. / mm): |
7.6 / 193 (FWD w/ 17-in. wheels) |
INTERIOR DIMENSIONS & PASSENGER VOLUME
Headroom (in. / mm): |
40.0 / 1016 (front w/o sunroof) |
Legroom (in. / mm): |
40.9 / 1040 (front) |
Shoulder Room (in. / mm): |
57.2 / 1453 (front) |
Hip Room (in. / mm): |
54.2 / 1377 (front) |
CURB WEIGHT, CARGO VOLUME & TRAILERING
Curb Weight (lb. / kg): |
3274 / 1485 ā LS FWD |
EPA Passenger Volume |
103.5 / 2931 |
Max Cargo Volume (cu. ft. / L)1: |
63.9 / 1809 (rear seat folded) |
Trailering Capacity (lb. / kg)2: |
1500 / 680 |
1Cargo and load capacity limited by weight and distribution.
2Before you buy a vehicle or used it for trailering, carefully review the trailering section of the Ownerās Manual. The weight of the passengers, cargo and options my reduced the amount you can tow.
SAFETY & DRIVER ASSISTANCE FEATURES
Airbags1: frontal and seat-mounted side-impact for driver and right front passenger with Passenger Sensing System; roof-rail mounted head-curtain for front and rear outboard seating positions |
Standard Tire Pressure Monitor System; tire pressure monitor includes tire fill alert (excludes spare tire, if equipped) |
Standard Rear Vision Camera2 (HD view on Premier) |
Standard Chevy Safety Assist2. Content includes Automatic Emergency Braking, Following Distance Indicator, Forward Collision Alert, Front Pedestrian Braking, Lane Keep Assist with Lane Departure Warning and IntelliBeam automatic high beams |
Driver Confidence II Package2 is standard on LT, RS and Premier and available on LS. Content includes Lane Change Alert with Side Blind Zone Alert and Rear Cross Traffic Alert. Also includes Front and Rear Park Assist on LT, RS and Premier and Rear Park Assist on LS |
Driver Confidence III Package2 is available on Premier and includes Automatic Parking Assist, HD Surround Vision and Adaptive Cruise Control |
Advanced Safety Package2 is available on LT and RS. Content includes HD Surround Vision, Adaptive Cruise Control and outside heated power-adjustable manual-folding mirrors with integrated turn signal indicators |
Safety Alert Seat is standard on Premier |
1Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See your vehicle Ownerās Manual for more information.
2Safety or driver-assistance features are no substitute for the driverās responsibility to operate the vehicle in a safe manner. The driver should remain attentive to traffic, surroundings and road conditions at all times. Visibility, weather and road conditions may affect feature performance. Read the vehicle Ownerās Manual for more important feature limitations and information.
